Mediation and security

Service sessions are not direct connections between netlets; that would not be secure enough. Instead the node mediates sessions, ensuring local security requirements are enforced. What a netlet uses is actually a proxy. The proxy runs in the netlet's own class space; the real work is done by the netlet/service/node running in its own class space. The mediation is performed by the node's mediator.^3.2

In fact, the node mediates all links between a netlet and the rest of the world, including networking and file system use. Figure  is a refinement of Figure (d). It shows where the mediation boundary is between class spaces.

For auditing and security, and because mediation is necessary, a facet or service cannot live without its provider netlet. In Figure  if the access point netlet dies then the service connection is terminated and its facets become useless to the consumer netlet. Similarly in Figure  if the provider netlet dies then all its facets go with it.

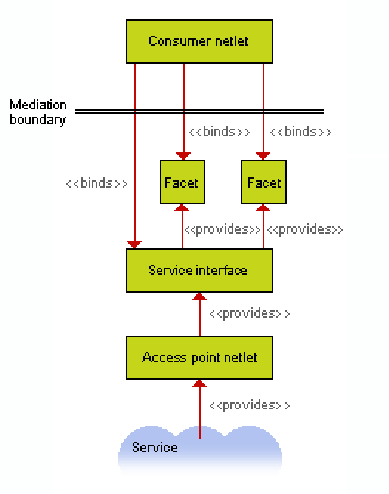

Figure: A refinement of Figure (d). All binding is mediated by the node.
